OBC-E6 Car Spray Booth
- Product Description
- Installation Manual
-
Outline dimension: 7000×5450×3400(mm)
Inside diameter: 6900×3900×2650(mm)
Entrance door: 3000×2600(mm)
Power: 47W
Technical Date
Cabin system

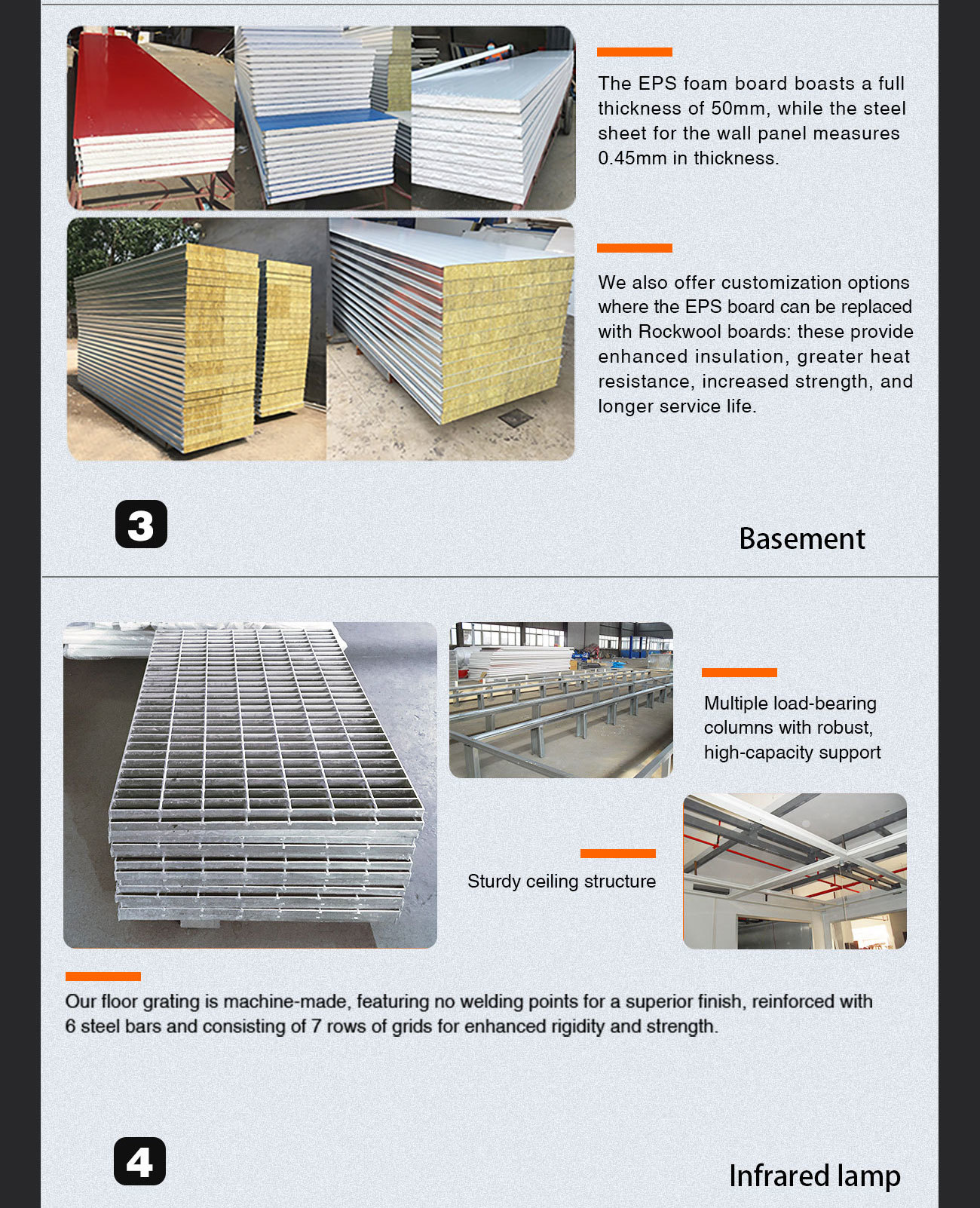

● Wall panel:High quality double construction insulation EPS colorful steel skin panel.Thickness: 50mm.Galvanized steel roof panel,anti-flame and heat-insulation.
● Basement:Plate type pressing convex platform made by high quality galvanized steel sheet and square tubes assembling, height is 300mm.2 rows flat steel grilles made by flat bar and round steel, 30*4mm.3 rows metal non-slip Diamond plates 3 pieces of full ramps, each size 1000*2000mm(W*L),Diamond plate construction(overall structure,not only two pieces of iron.)Ventilation systemt

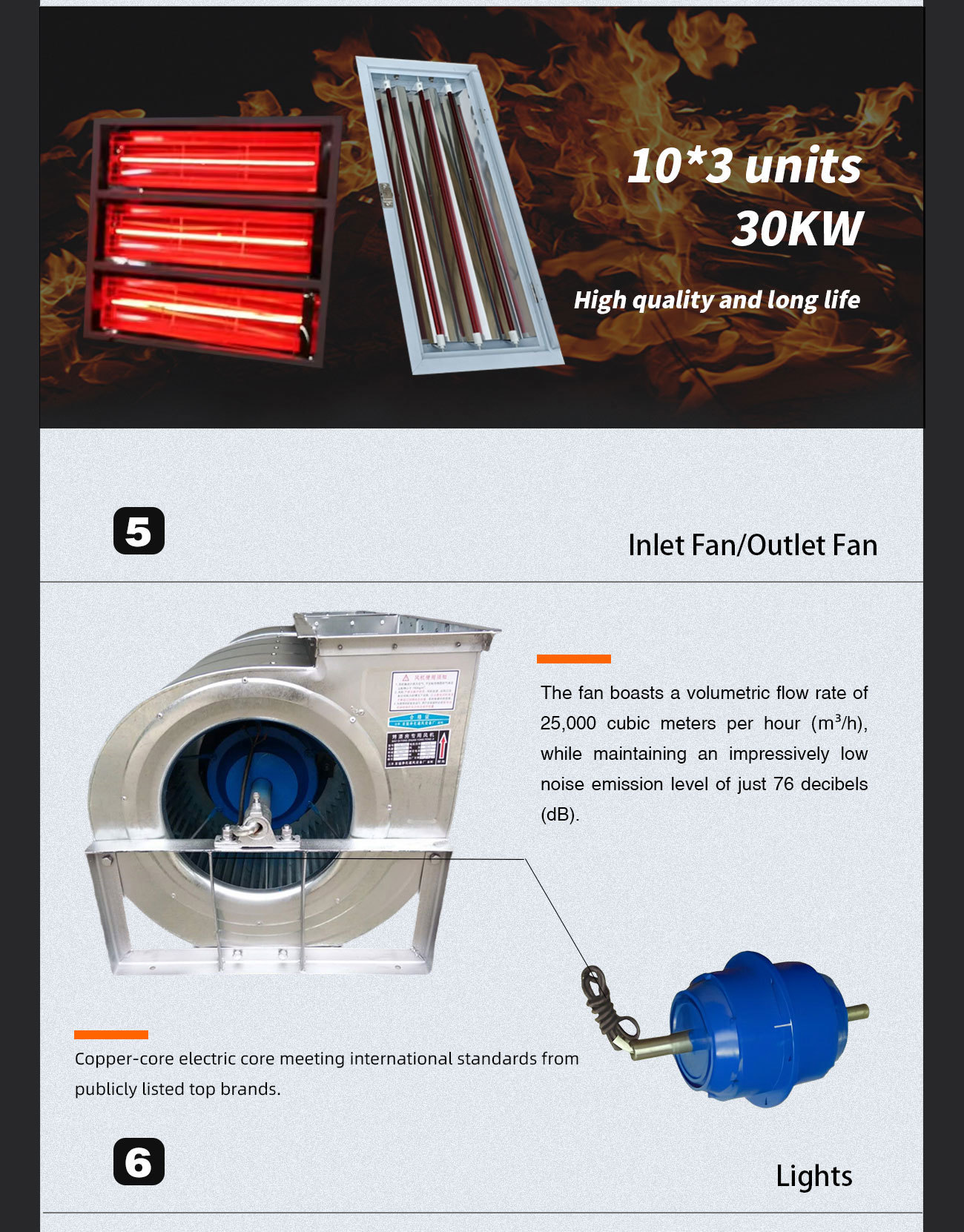

● Inlet fan:1*7.5KW turbo fan ,total air capacity:25000 m³/h.
● Outlet fan:1*7.5KW turbo fan,total air capacity:25000m³/h.
● Cabinet setting type:adopt powder quadrate steel frame.Cabinet for fan* 1 unit, air duct 1m *2 unit, Elbow: 90º * 1 unit.
● Airflow speed:0.4m/s,ventilation rate 315time/h.Heating system
● Infrared lamp:10 units infrared lamps for heating, 3 lamps/unit, each lamp 1KW.8-10 minutes (from 20 to 60 ℃) under baking status,max baking temperature is 80 ℃.
Roof system
● Beam:Made by galvanized square pipe, with supporting and angle iron connected by screw.
● Plenum:The plenum made by galvanized steel, powder-coated on the surface.Lighting system
● Ceiling Lights:LED，with powder-coated light box.8 units×4pieces =32pieces ×18W
● Side Lights:10 units×2pieces=20pieces×18WFilter system
● Primary filter:The primary filter can capture granules larger than 10μm , filtering rate > 83%
● Ceiling Filter:Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%
● Floor Filter:Multi-layer fiberglass filter,filtering rate＞70%Control system
● Fuction:Intelligent controlling system, Lighting, painting, over load, open phase protection.
