OBC-GH1 Car Spray Booth
- Product Description
- Installation Manual
-
Outline dimension: 7000×5350×3400(mm)
Inside diameter: 6900×3900×2650(mm)
Entrance door: 3000×2500(mm)
Power: 11KW
Technical Date

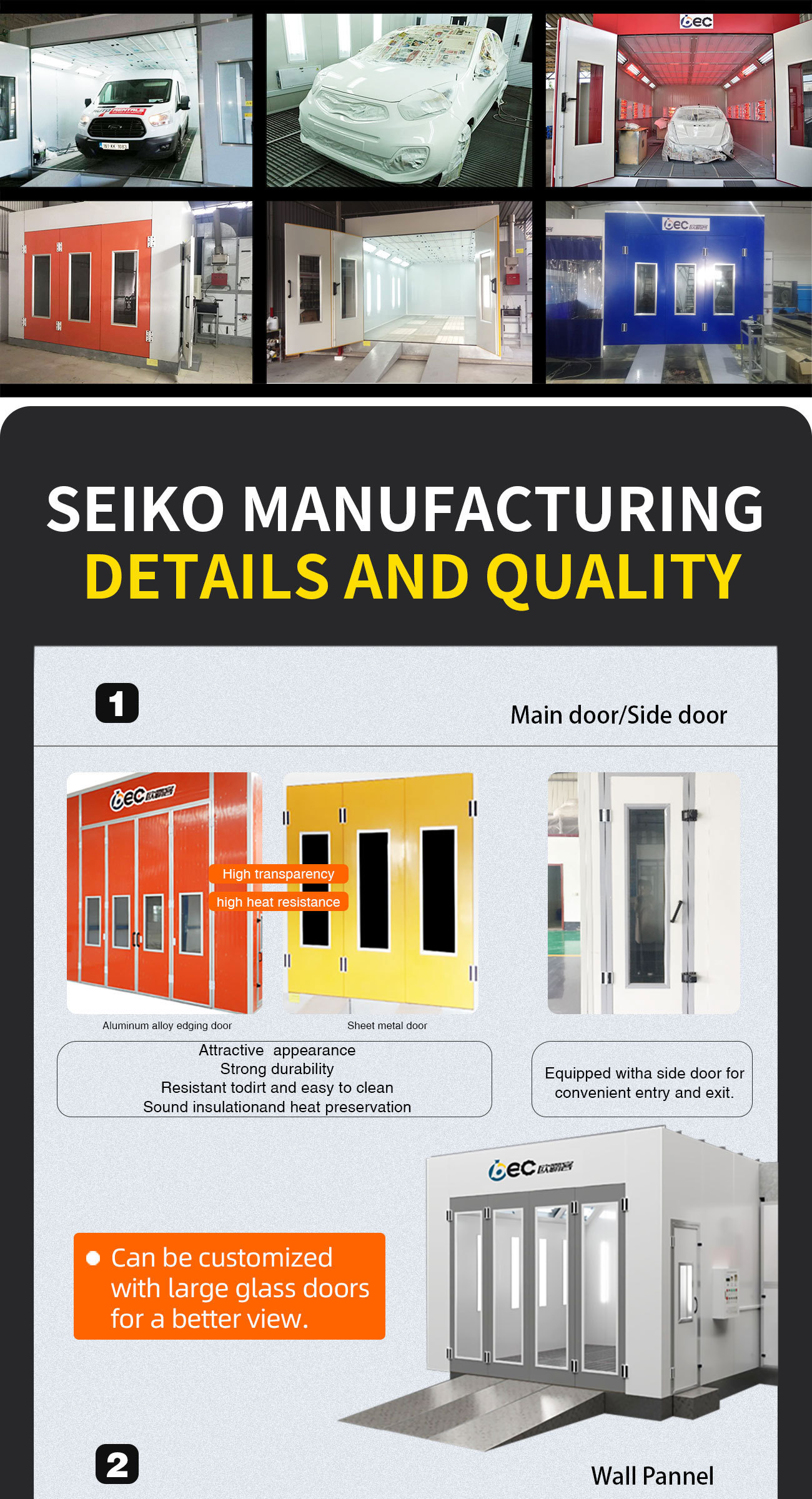

Cabin system

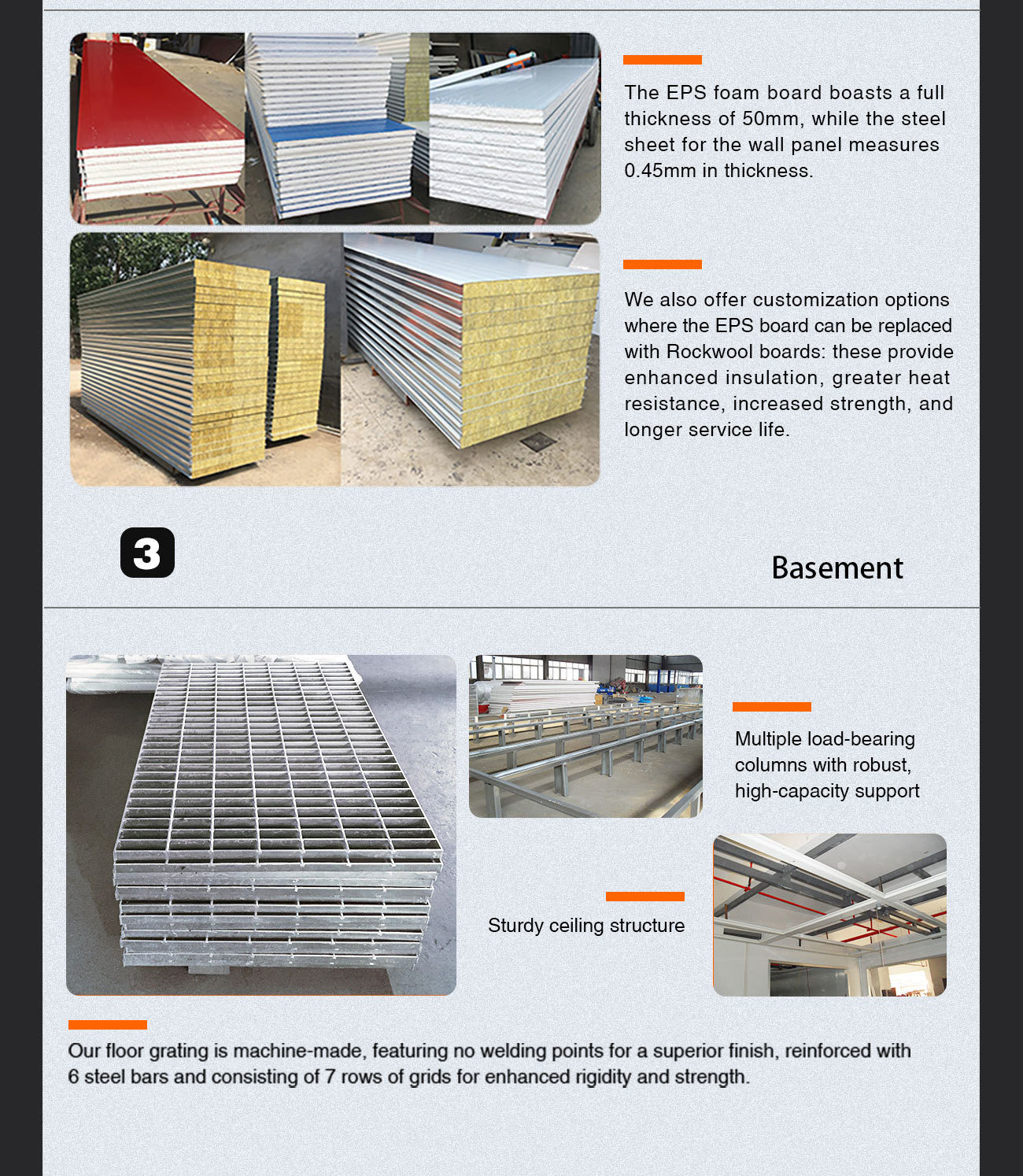

● Wall panel:50mm double construction insulation EPS with Galvanized steel panel.
● Basement: No Foundation
Ventilation systemt

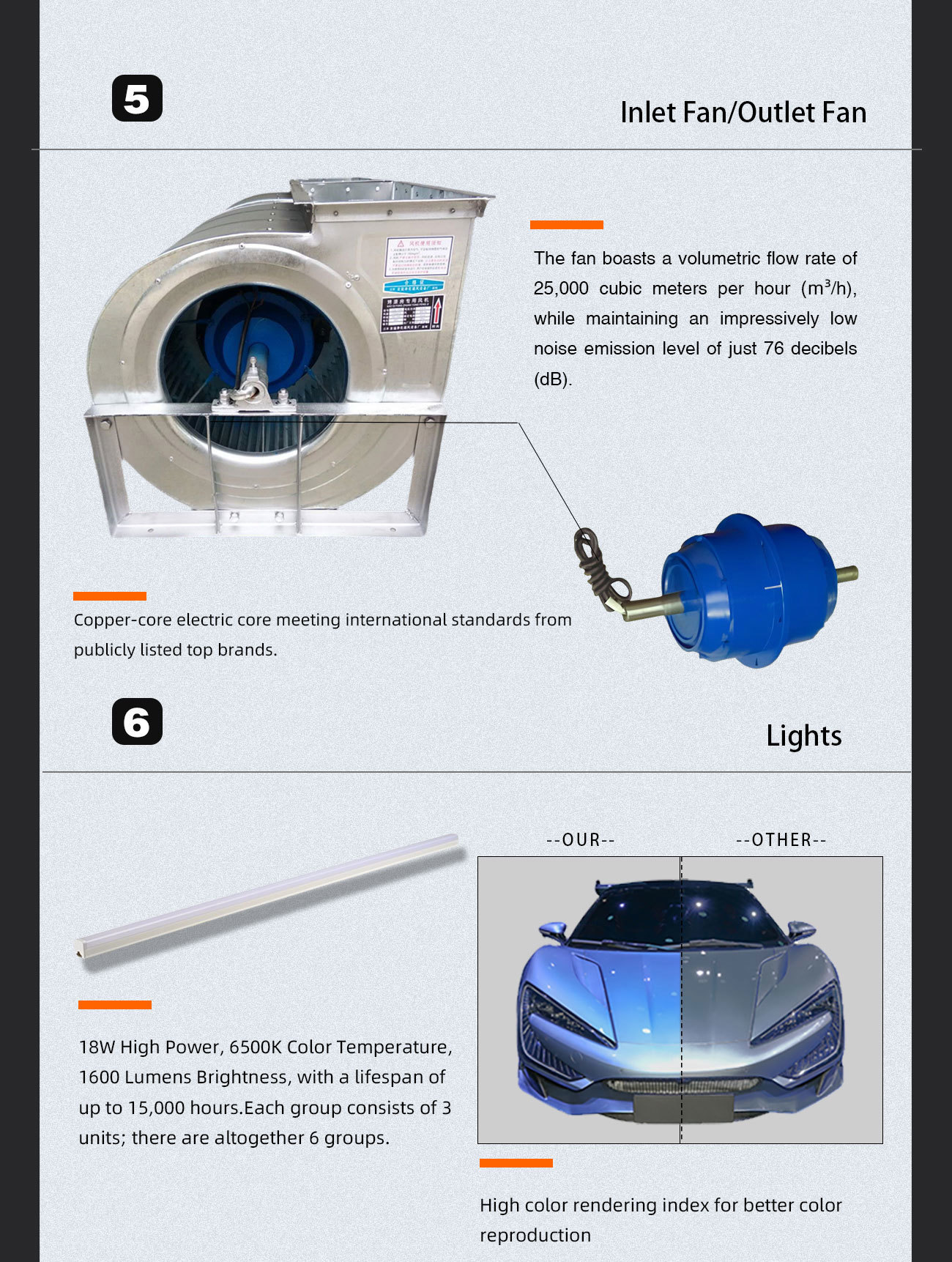

● Inlet fan:2*3kw YDW double-intake centrifugal fans, total air capacity:21000m³ /h.
● Outlet fan:1*4KW double-intake centrfugal fans,model:YDW4.5AL1, air capacity:12000m³/h.
● Cabinet setting type:Side upper intake air,inside rock-wool insulation-electric damper actuates from spraying to baking cycle.
● Airflow speed:0.4m/s,ventilation rate:315time/h.
Heating system

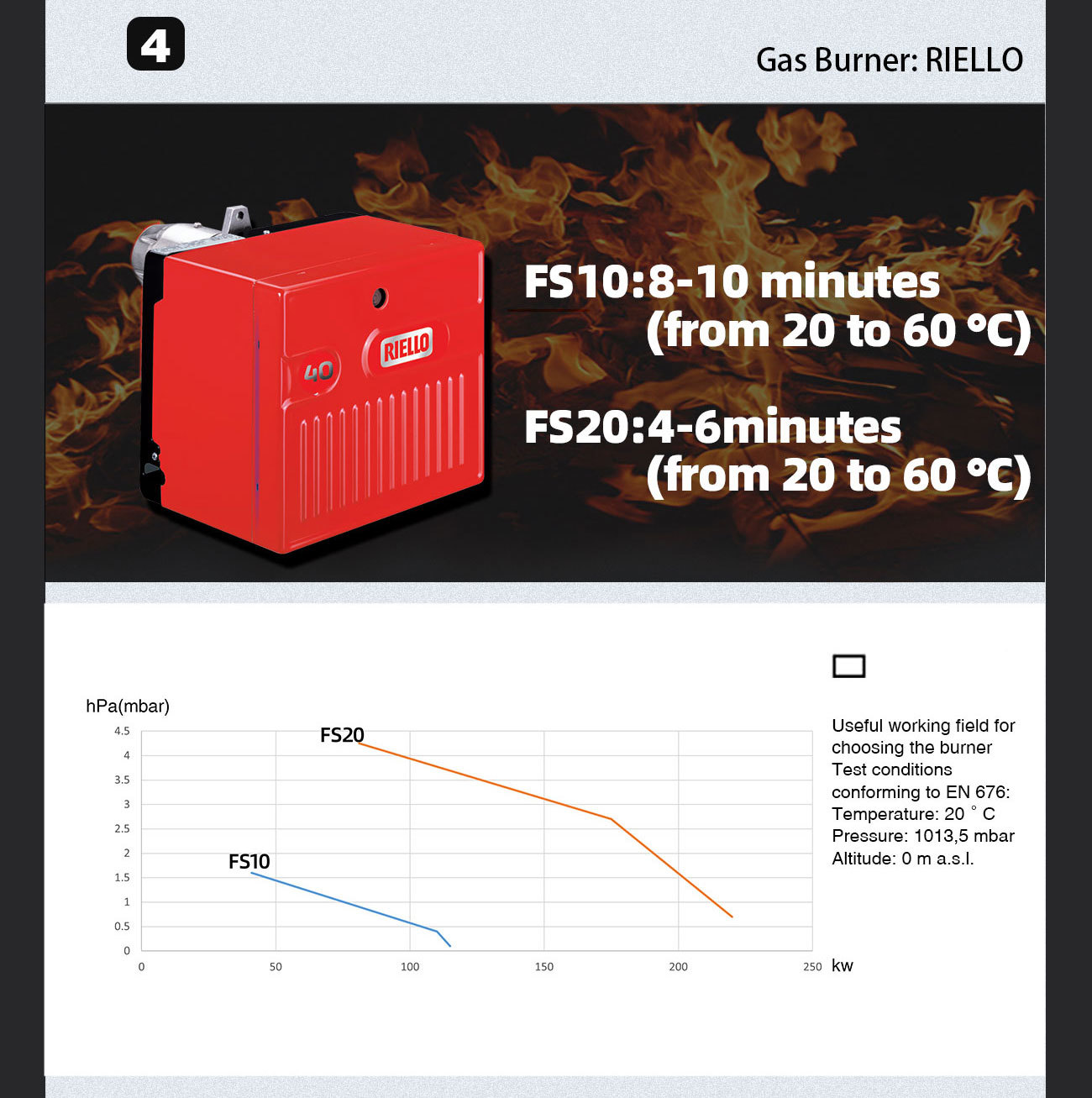

● Diesel Burner: RIELLO FS10
● Heat exchanger:Heating productivity:100000Kcal/h.SUS304 stainless steel.
8-10 minutes (from 20 to 60 ℃) under baking status,max baking temperature is 80 ℃ .
Roof system
● Beam:Made by galvanized square pipe, with supporting and angle iron connected by screw.
● Plenum:The plenum made by galvanized steel, powder-coated on the surface.
Lighting system
● Ceiling lights:LED,with powder-coated light box.8 units×4pieces =32pieces ×18W
Filter system

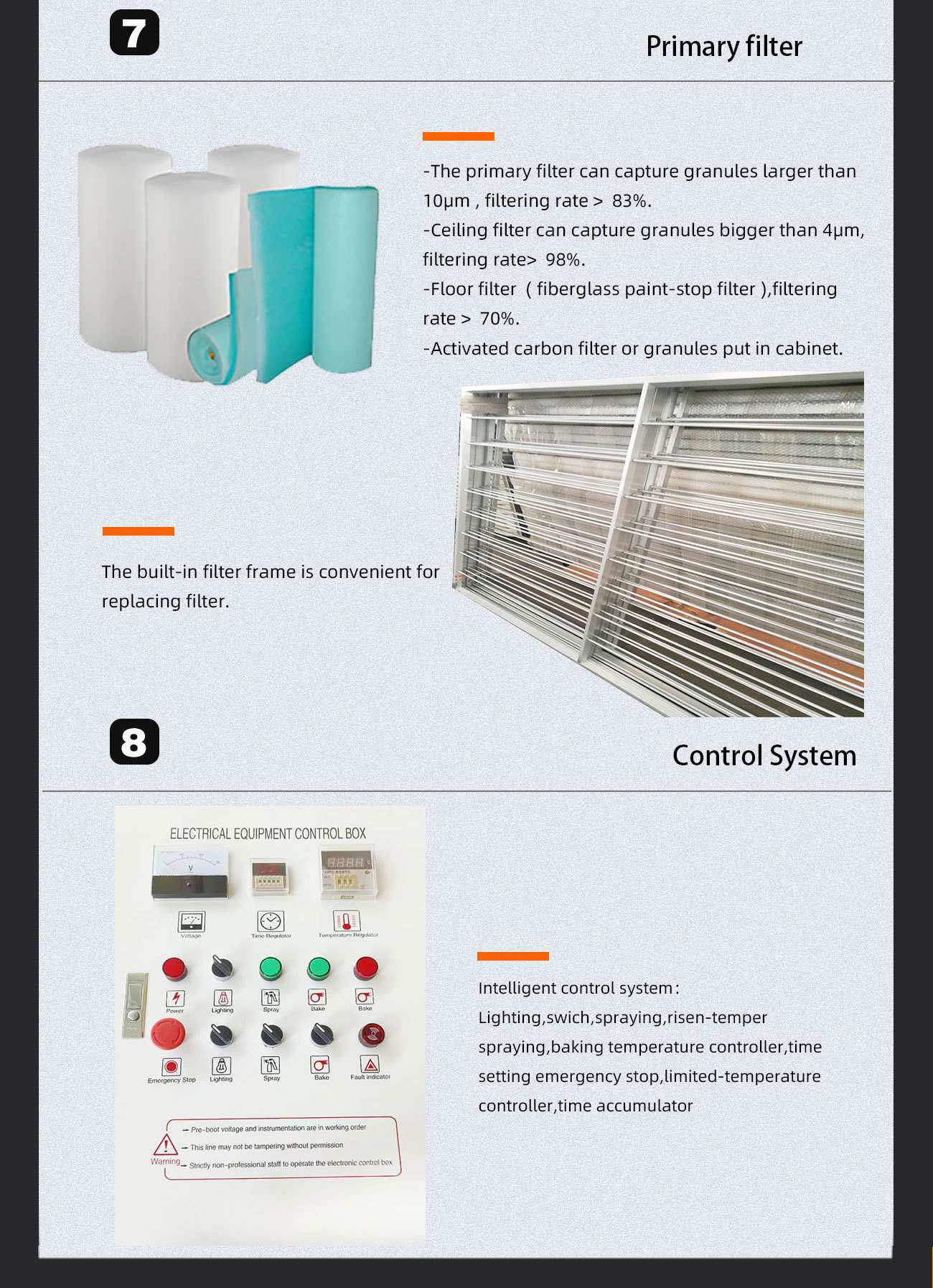

● Primary filter:Grade G2 plate typr, filter rate > 83%.
Control system
● Fuction:Intelligent controlling system, Lighting, painting, over load, open phase protection.
Key words:
OBC-GH1 Car Spray Booth
