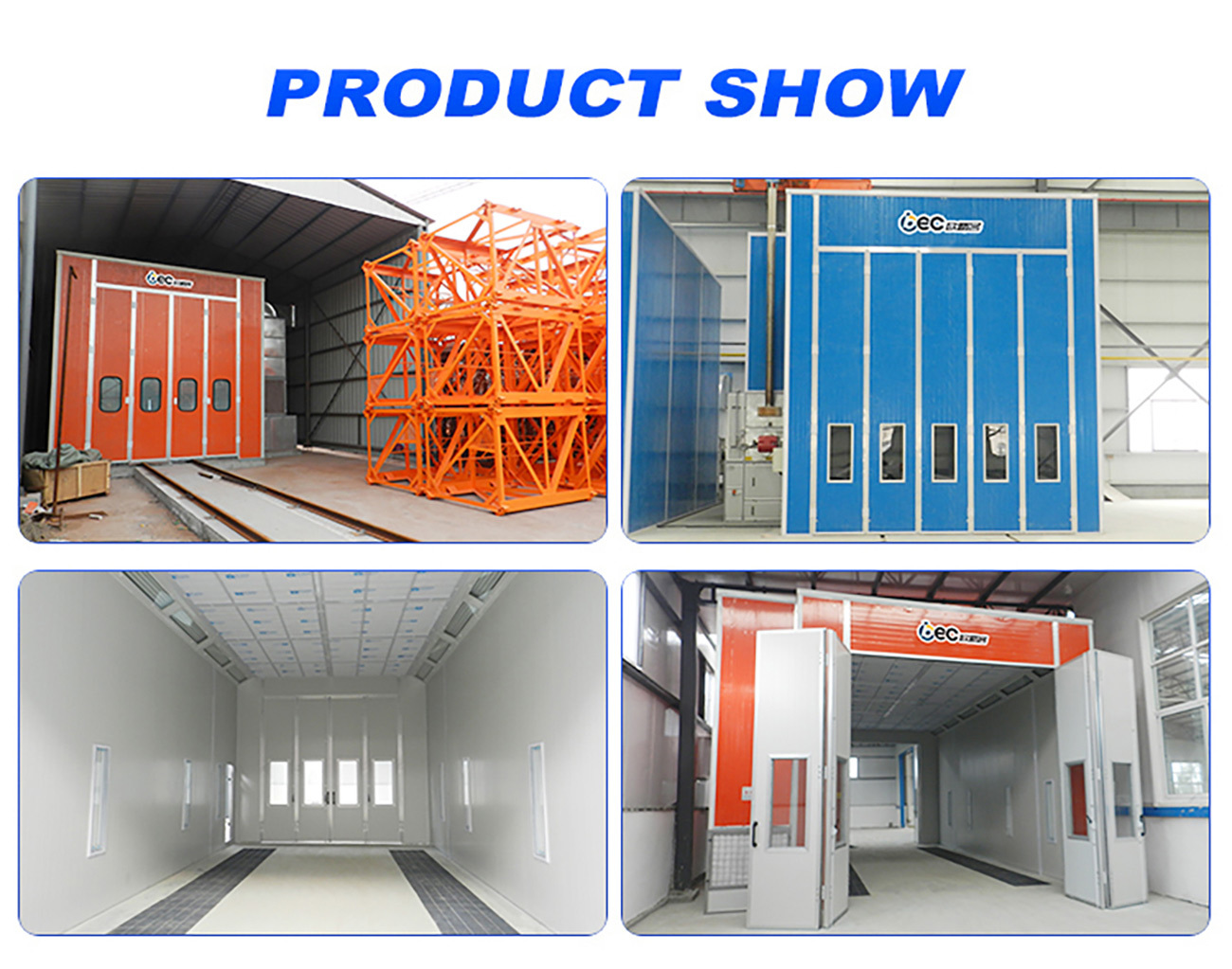

OBC-DS15 Truck Spray Booth
- Product Description
- Installation Manual
-
Outline dimension: 15000×5000×5000(mm)
Inside diameter: 15144×6896×5600(mm)
Entrance door: 4000×4500(mm)
Power: 57.5KW
Technical Date
Cabin system
● Wall panel: wall with 3 groups of steel reinforcement in the middle,the top with 3 groups of steel composite beam, High quality double construction insulation EPS colorful steel skin panel.Panel thickness: 75mm.
● Galvanized steel roof panel, anti-flame and heat-insulation.Ventilation systemt

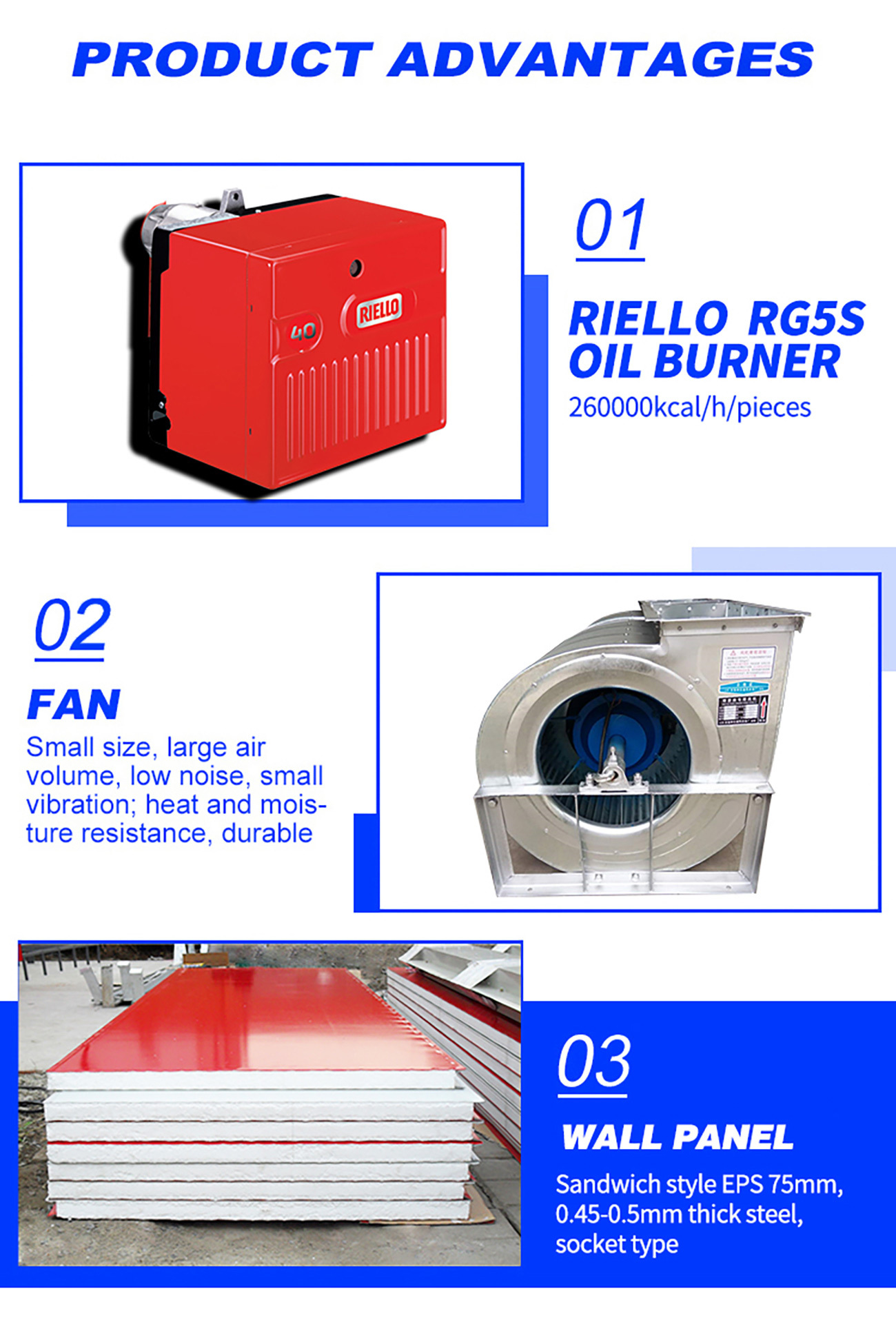

● Inlet fan:YDW double-intake centrfugal fans power 7.5kw, flow rate 20000m3/h.
● Outlet fan:11kw, flow rate:36000m3/h,Heating system
● Heating system(2 sets) equipped with 2 RIELLO diesel burners,2 stainless steel efficient heat exchangers, 2 electric damper to perform spray paint cycle.
● Maximum calorific value: 520000kcal/h.Lighting system

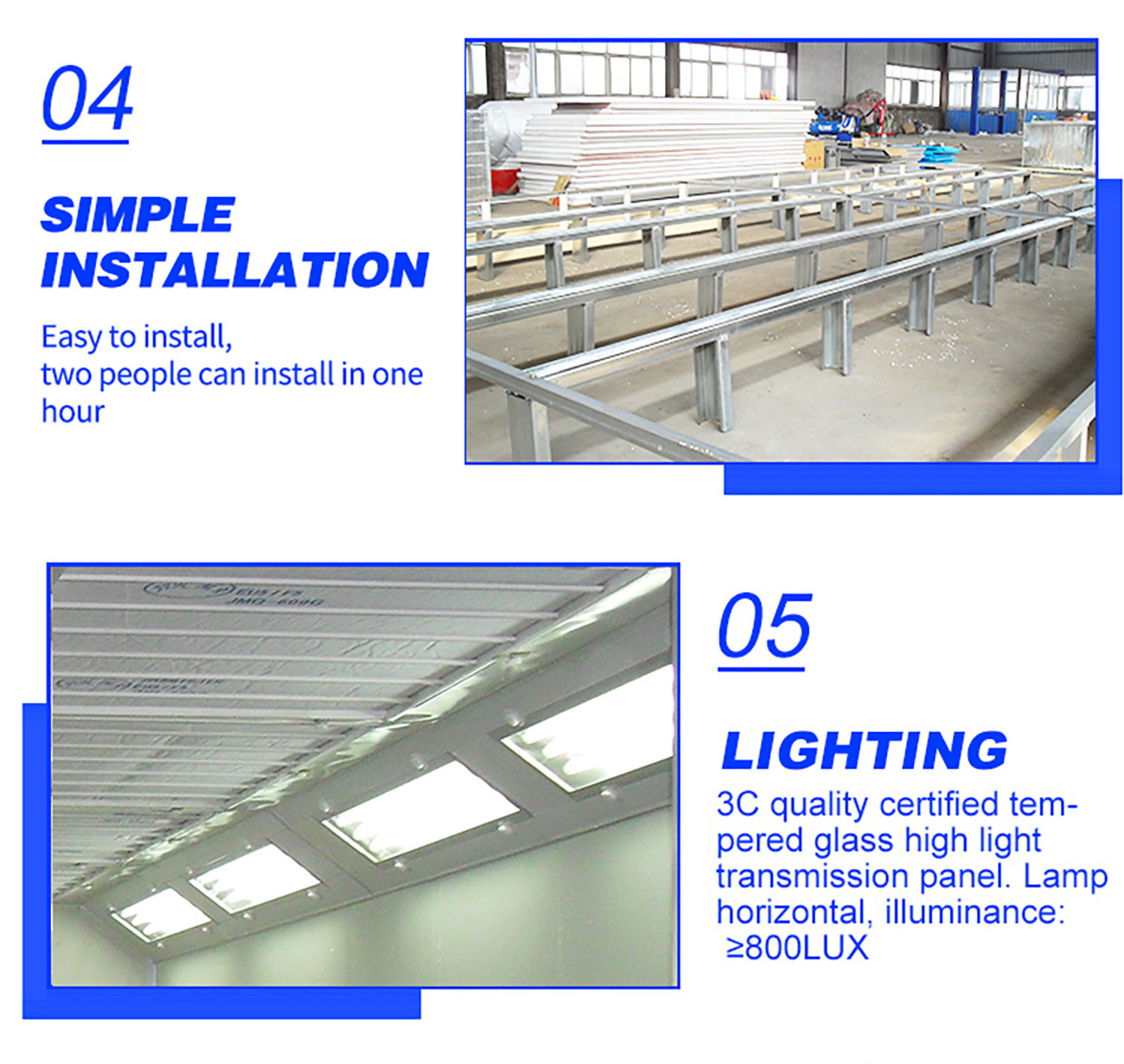

● Lighting upper row lights:18 groups *4 =72 36W tubes, with14 groups *4 =56 36W vertical waist lights (left /6, right/6, back/2)
Filter system

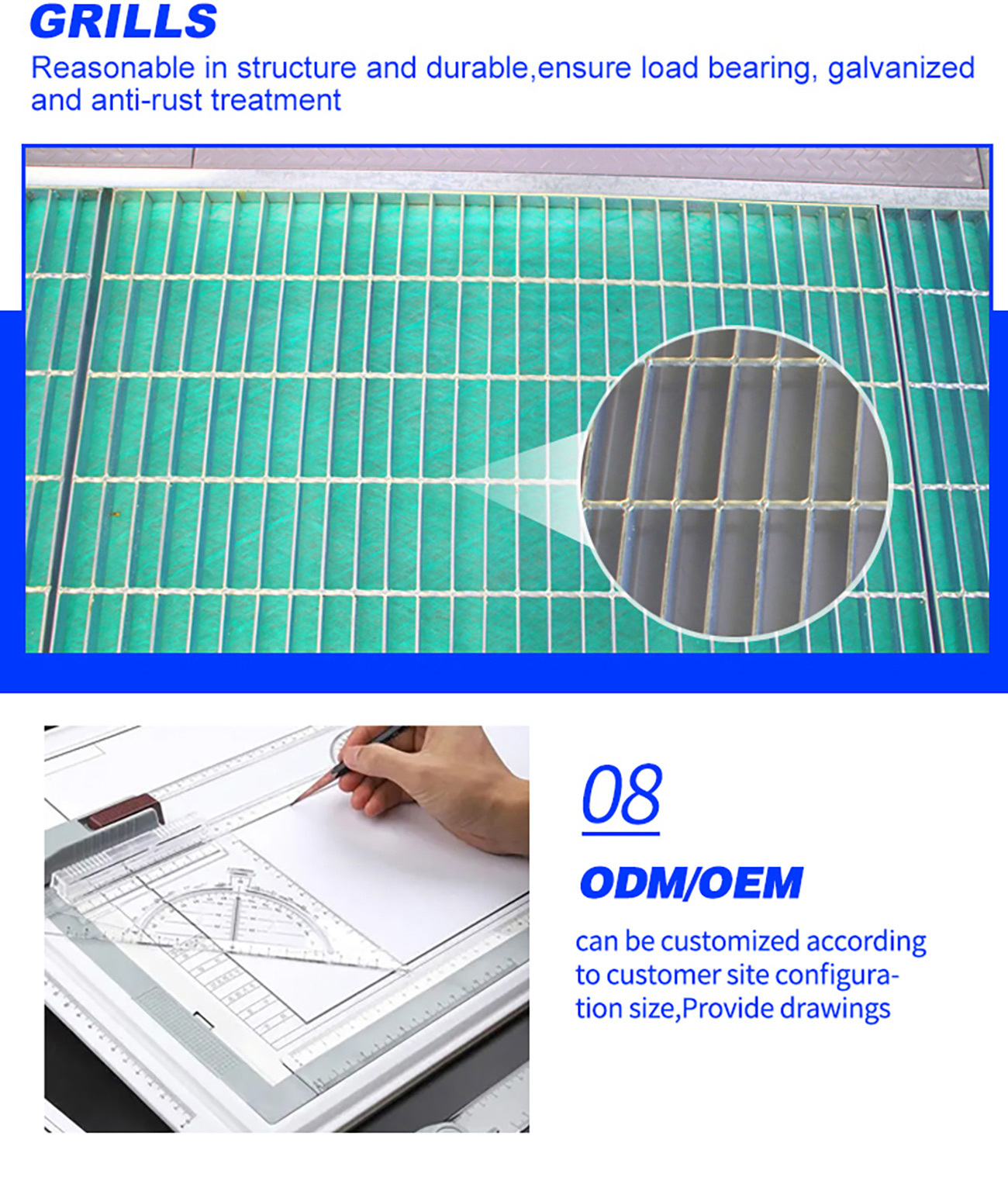

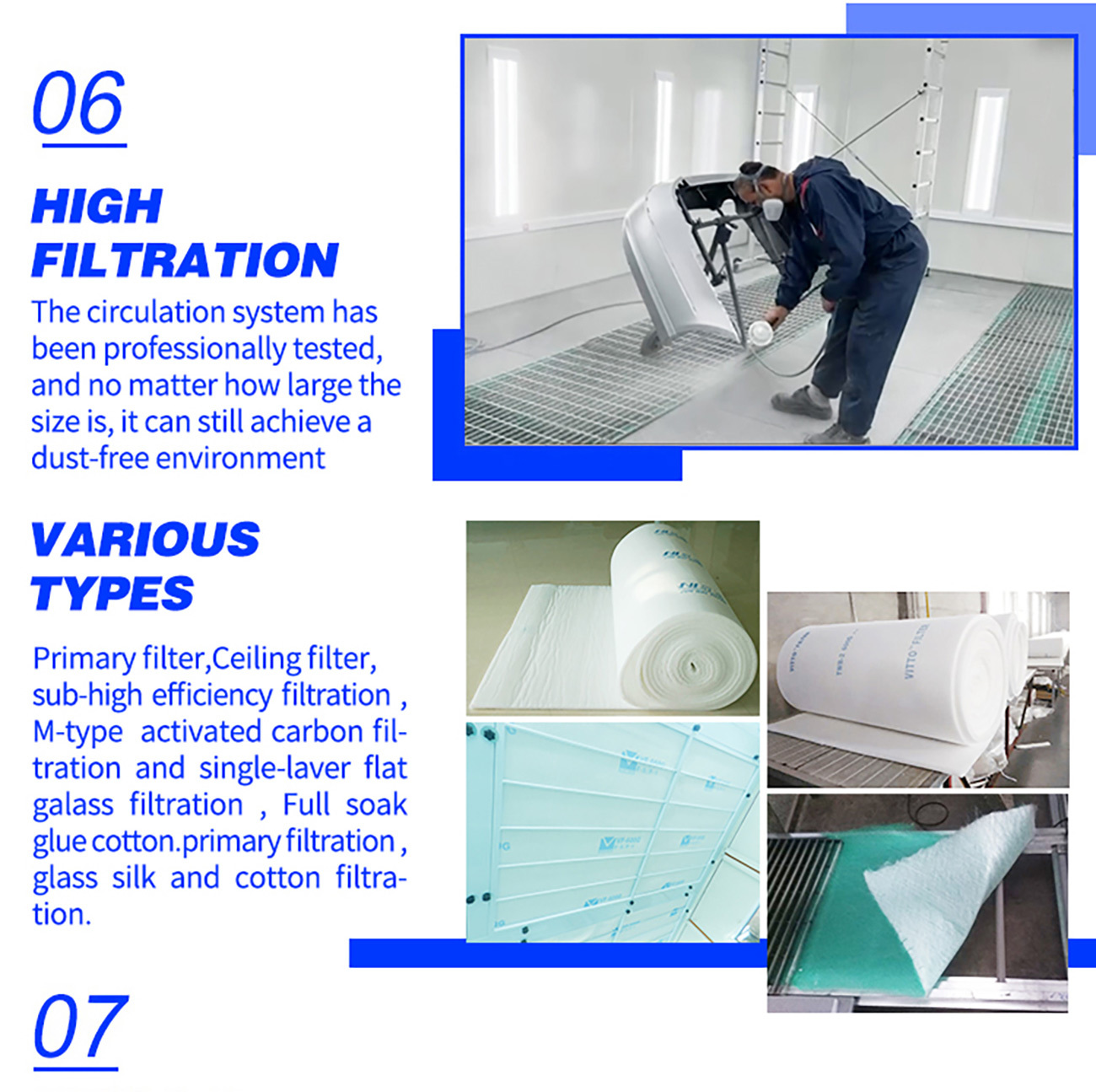

● Primary filtration, sub-high efficiency filtration, glass silk and cotton filtration, m-type activated carbon filtration and single-layer flat glass filtration.Top plate 75mm.EPS maximum operating temperature of insulation top plate 80℃.
Control system
● Fuction:Function 1 set electric control box.
● Intellengent controlling system, Lighting switch, spraying , heat spraying , baking , temperature controller, time setting,
emergency stop.
Key words:
OBC-DS15 Truck Spray Booth
Get A Quote
