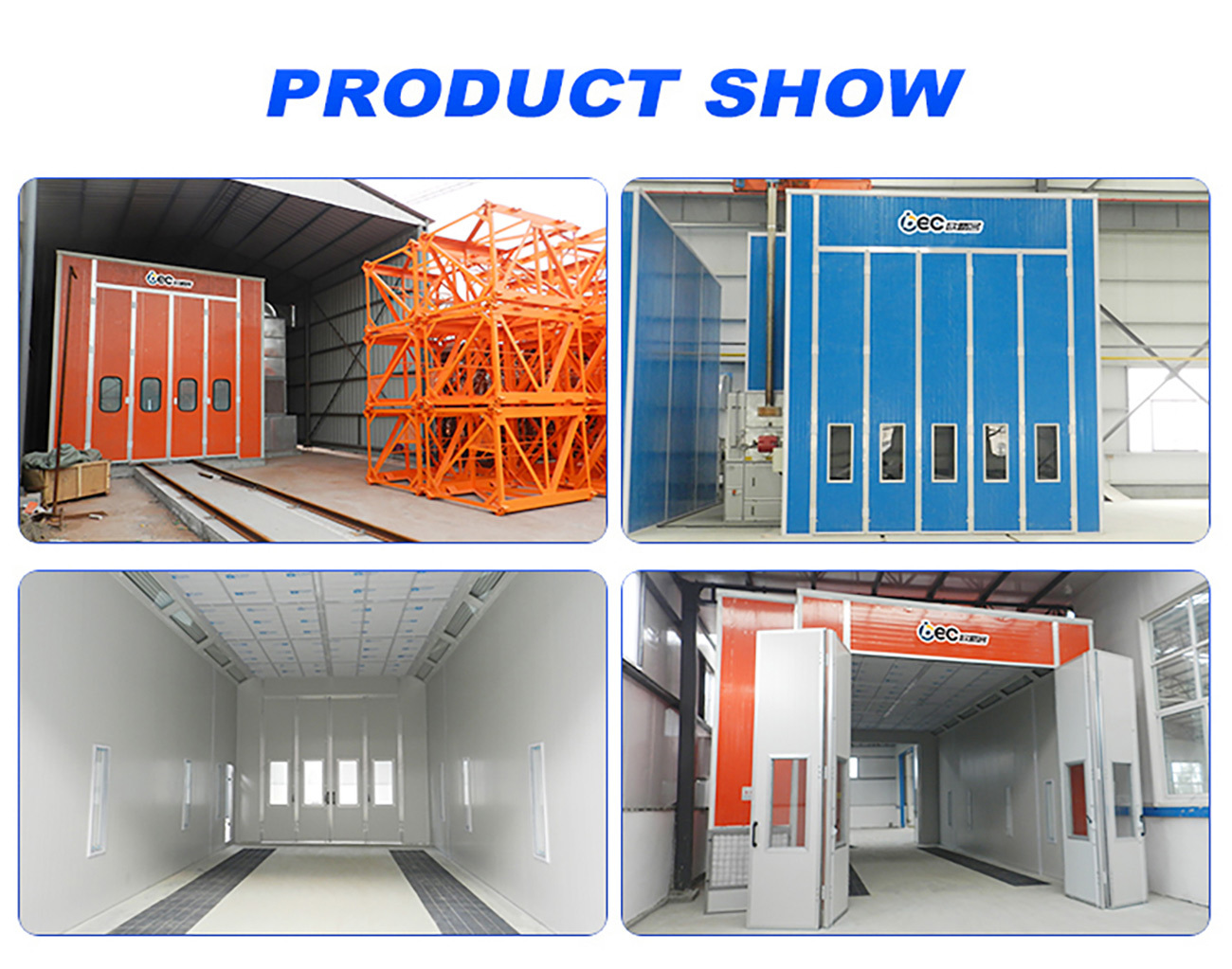

OBC-DS12 Truck Spray Booth
- Product Description
- Installation Manual
-
Outline dimension: 12150×7500×3950(mm)
Inside diameter: 12000×6000×3500(mm)
Entrance door: 4000×3400(mm)
Power: 38KW
Technical Date
Cabin system
● Wall Panel: High quality double construction insulation EPS colorful steel skin panel.Panel thickness: 75mm.
● Galvanized steel roof panel, anti-flame and heat-insulation.Ventilation systemt
● Inlet fan:2 group* 2*5.5kw=4set *5.5kw YDW double-intake centrfugal fans,air capacity:16000m³/h for each set.
● Outlet fan:2 group*1*7.5kw=2set *7.5kw YDW double-intake centrfugal fans,air capacity:20000m³/h for each set.
● Cabinet:setting type Intake air from side upper, adopt powder quadrate steel frame, Cabinet for the fan*1 unit ;
Air duct: 2m *1 unit;Elbow: 90º *1unit
● Airflow speed :0.4m/s, ventilation rate: 320times/hHeating system

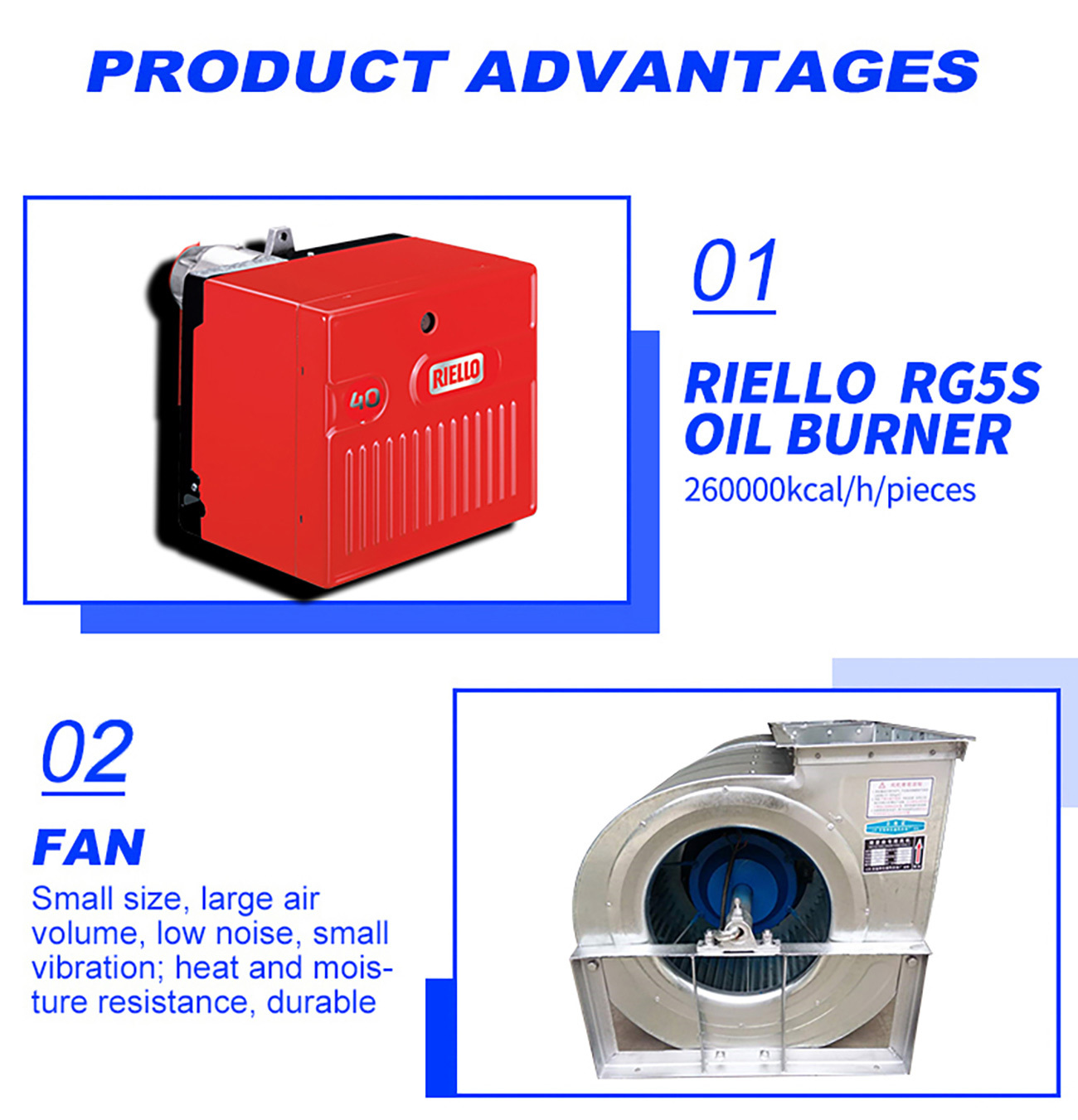

● Burner:ltaly RIELLO G10 diesel burner*2,heating capacity:200000kcal/h,with BELIMO 10N electric damper or pneumatic
Working temperature:80℃Roof system ● Beam:Made by galvanized square pipe, with supporting and angle iron connected by screw.
● Plenum:The plenum made by galvanized steel, powder-coated on the surface.The roof filter support frame is made by galvanized square tubes, powder-coated on the surface.Lighting system

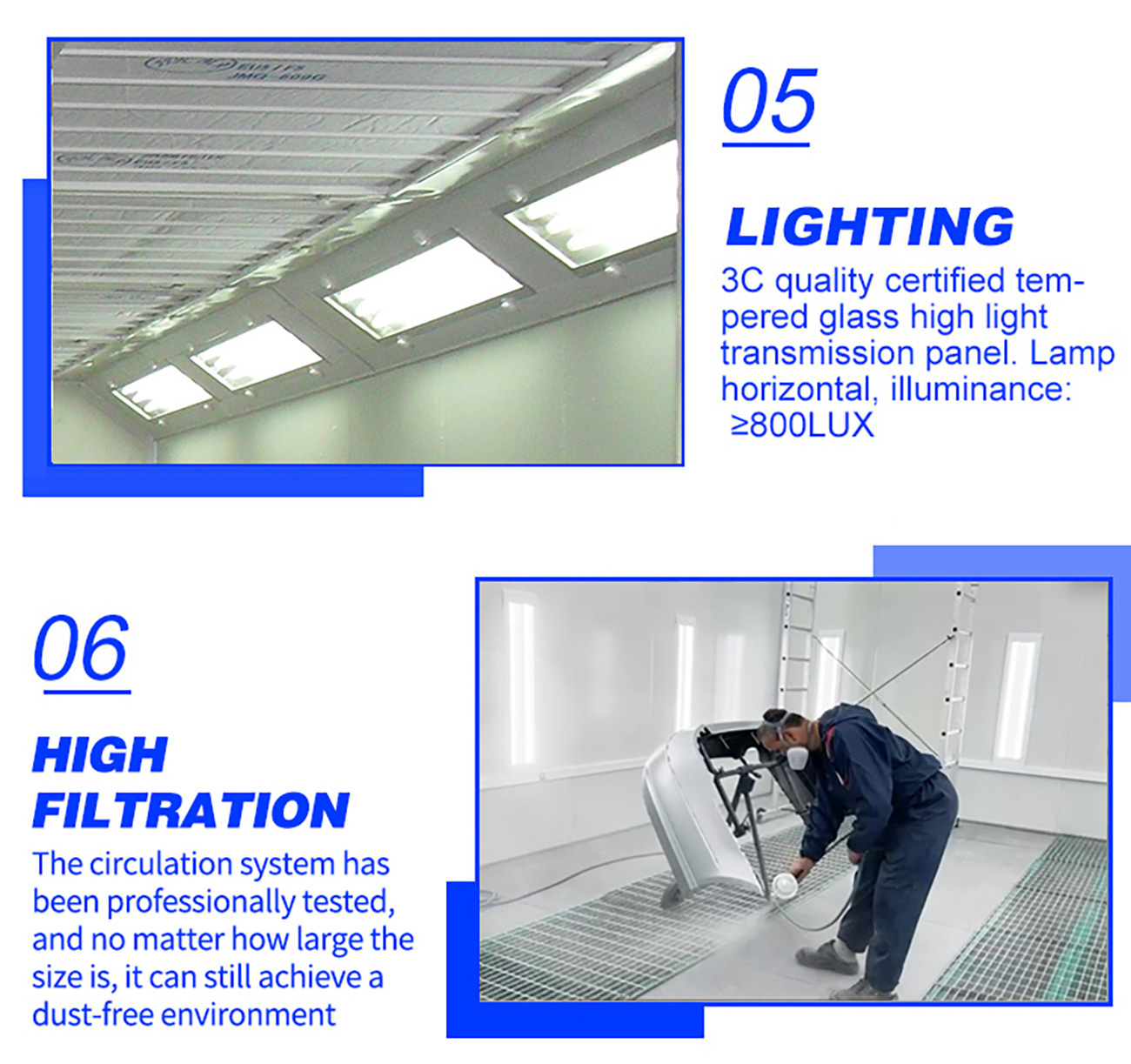

● LED Ceiling lights:12 units×4pieces =48pieces ×36W,with powder-coated light box.
● Inside brightness: 850 lux-900luxFilter system

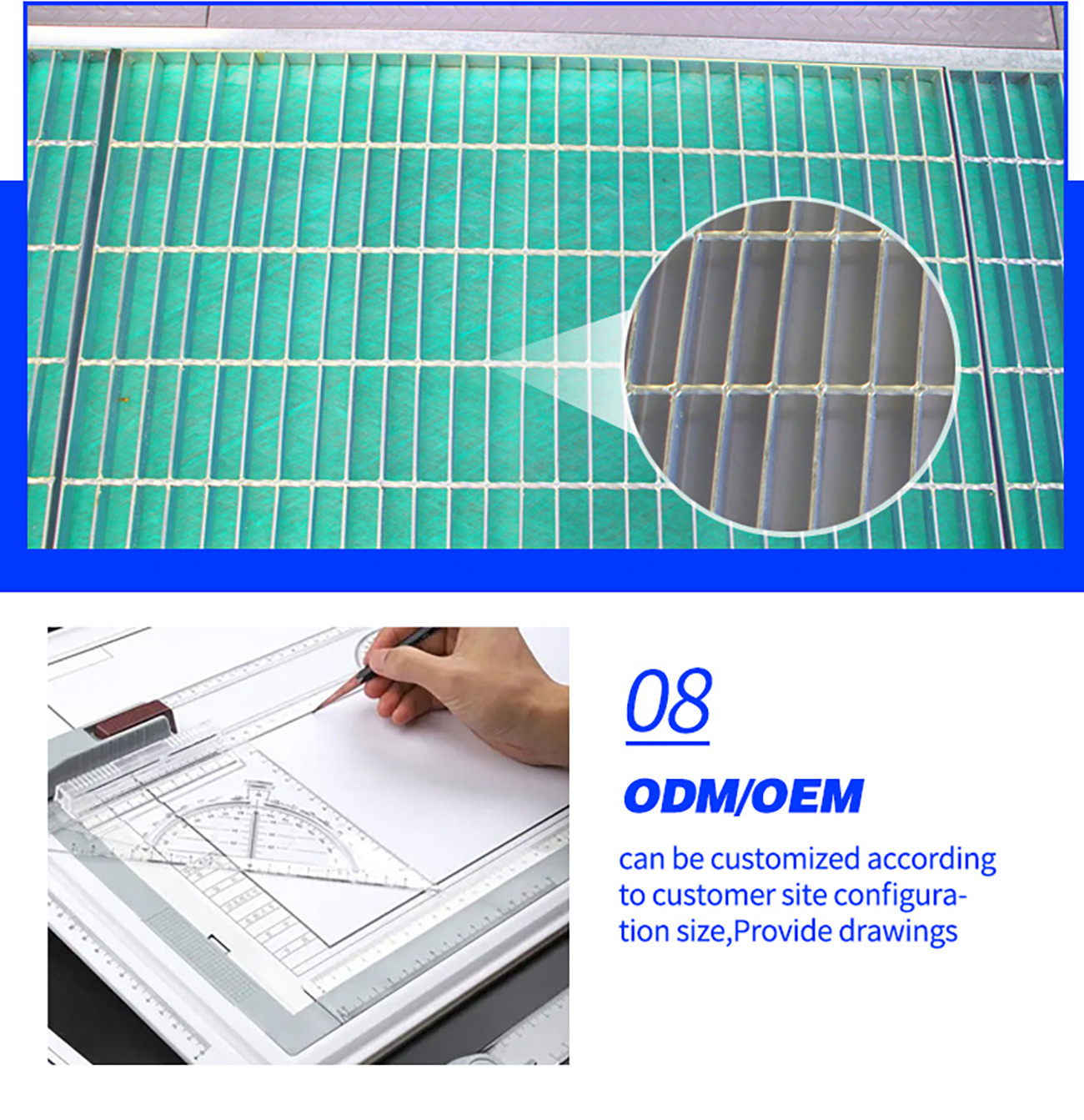

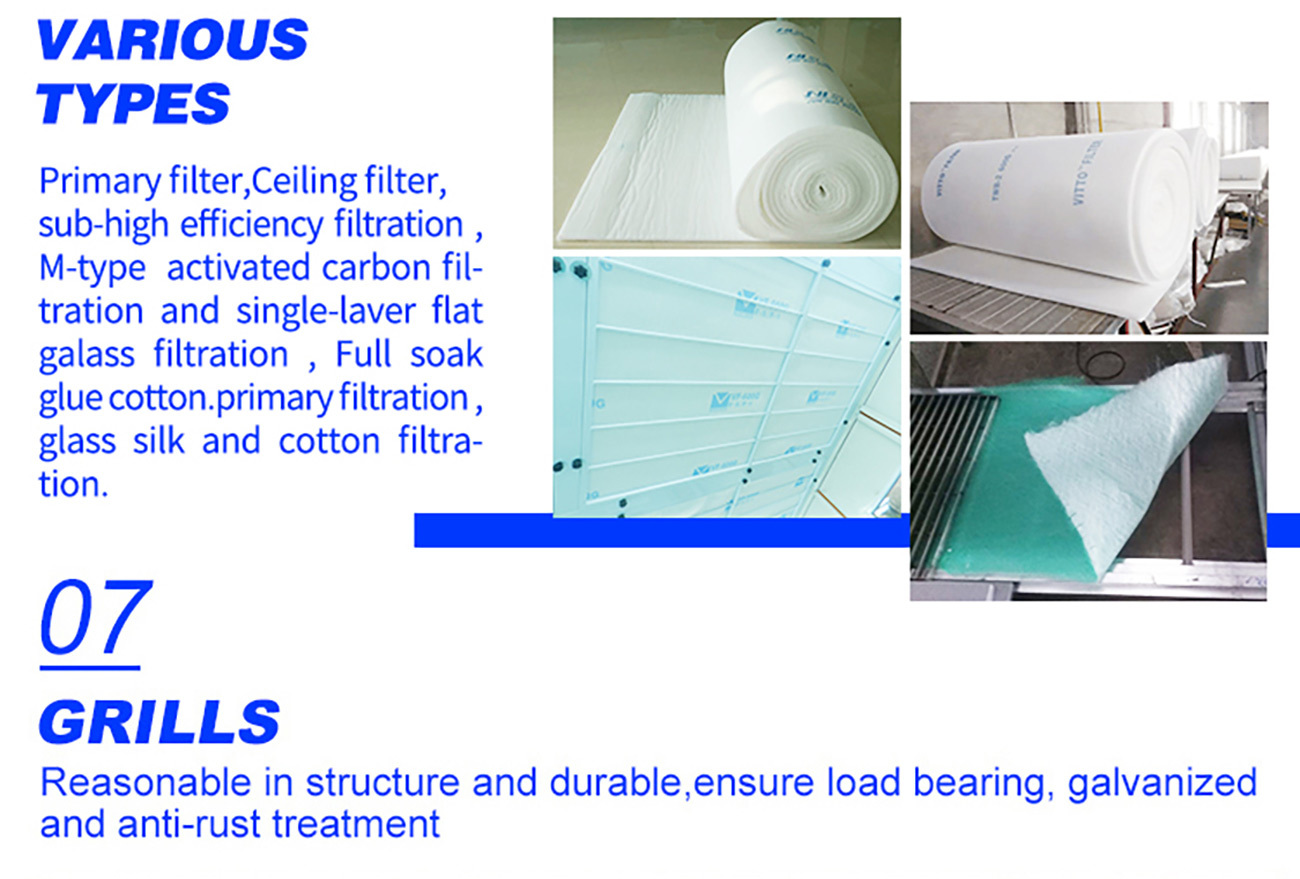

● Primary filter:The primary filter can capture granules larger than 10μm , filtering rate > 83%.
● Ceiling filter:Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%.Control system
● Fuction:Function 1 set electric control box.
● Intellengent controlling system, Lighting switch, spraying , heat spraying , baking , temperature controller, time setting, emergency stop.
