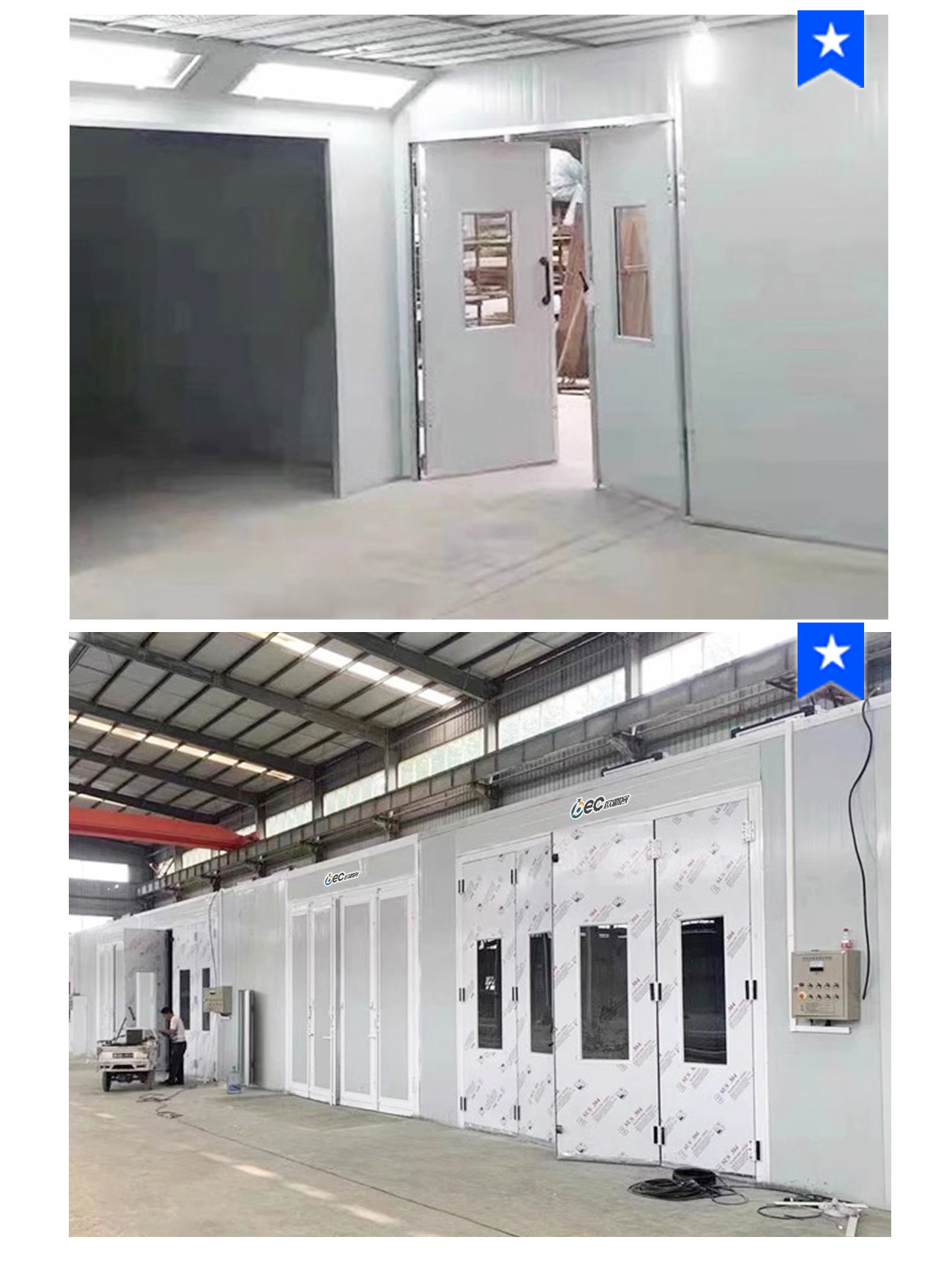

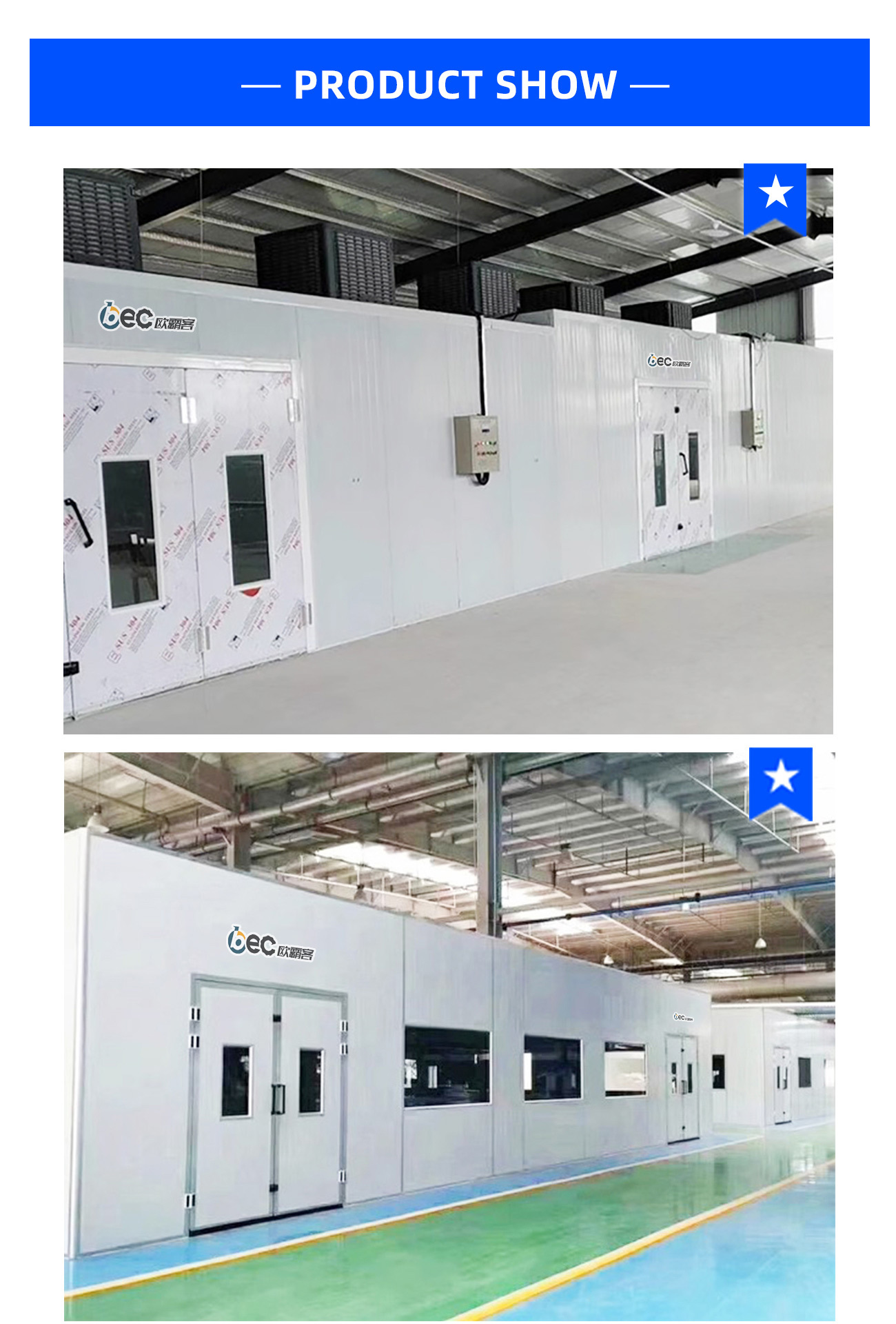

OBC-FF1 Furniture Spray Booth
- Product Description
- Installation Manual
-
Outline dimension: 12000×6000×4100(mm)
Inside diameter: 11900×4900×2600(mm)
Entrance door: 1900×2000(mm)
Power: 46.5KW
Technical Date

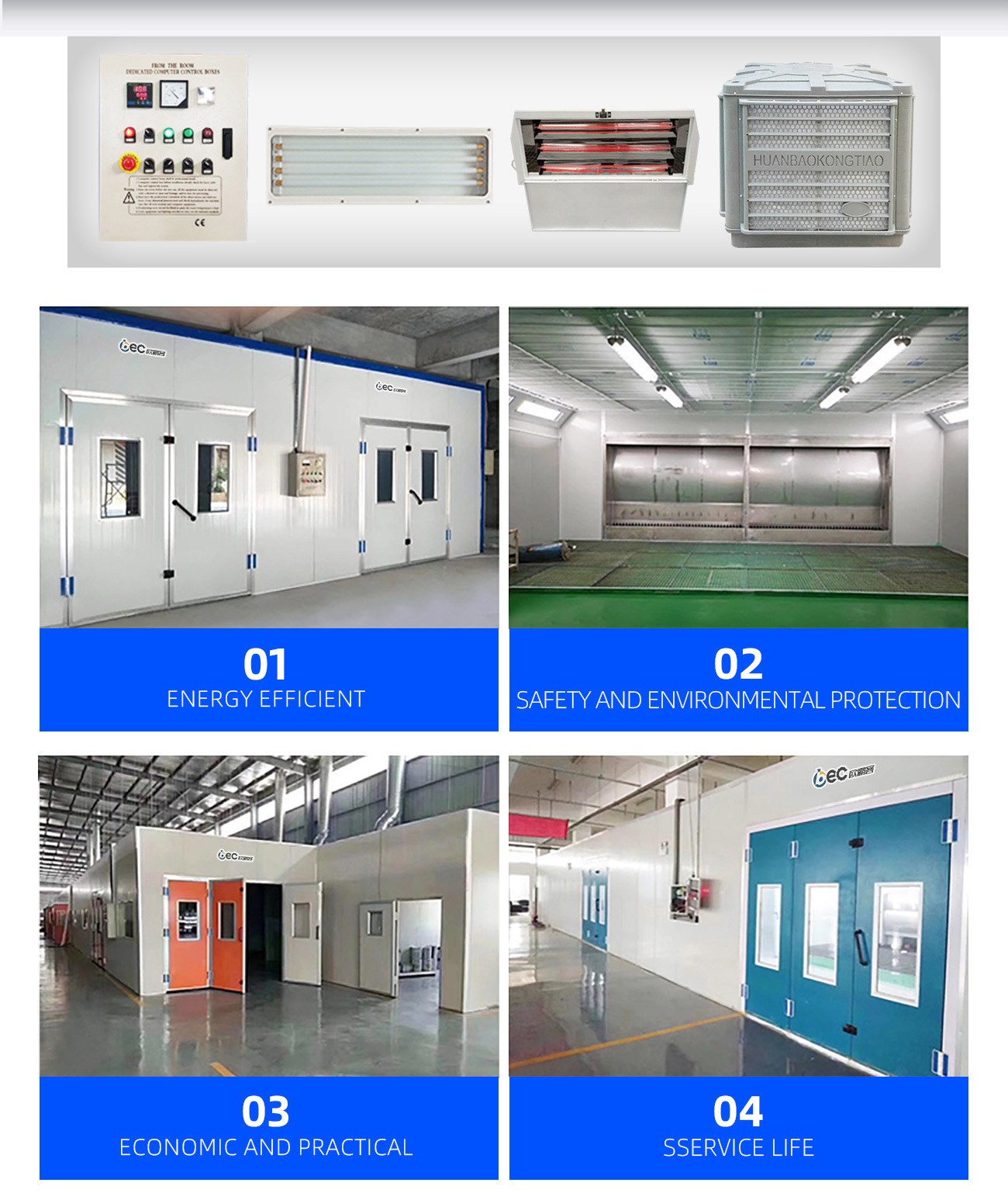

Cabin system
● Wall panel:High quality double construction insulation EPS colorful steel skin panel Panel thickness: 50mm.Galvanized steel roof panel, anti-flame and heat-insulation.
● Basement:Grills: 30mm×4mm flat steel shall be welded and painted.Underground water pool size: 3000*3000mm*500mm(L*W*D)
2000mm inside the spray booth,1000mm outside the spray booth.Water curtain:2800*1300mm with water pump,1*2.2KW fan.Ventilation systemt
● 3 sets 1.5KW overhead fan
● 2 sets Axial Fan.
● Airflow speed:0.4m/s, ventilation rate: 320times/hHeating system
● 10 units infrared curing lamps for heating, 3 lamps/unit,each lamp 1KW, Total power: 30KW.
Roof system ● Beam:The static chamber adopts light steel structure, and the frame adopts 40mm×60mm rectangular pipe for welding and painting.
● Plenum:The cotton beam groove adopts 0.8mm zinc plate folding system to spray powder. Top cotton bracket adopts mechanism concave pipe material and 6mm round steel welding powder spraying.Lighting system
● Painting cabinet Ceiling lights:LED Ceiling lights:6 units×4pieces =24pieces ×40W LED.with powder-coated light box.
● The lighting box is folded by zinc plate and sprayed with powder.Filter system
● Primary filter:The primary filter can capture granules larger than 10μm , filtering rate > 83%.
● Ceiling filter:Ceiling filter can capture granules bigger than 4μm, filtering rate> 98%.Control system
● Intellengent controlling system, Lighting switch, spraying , heat spraying , baking , temperature controller, time setting, emergency stop.
