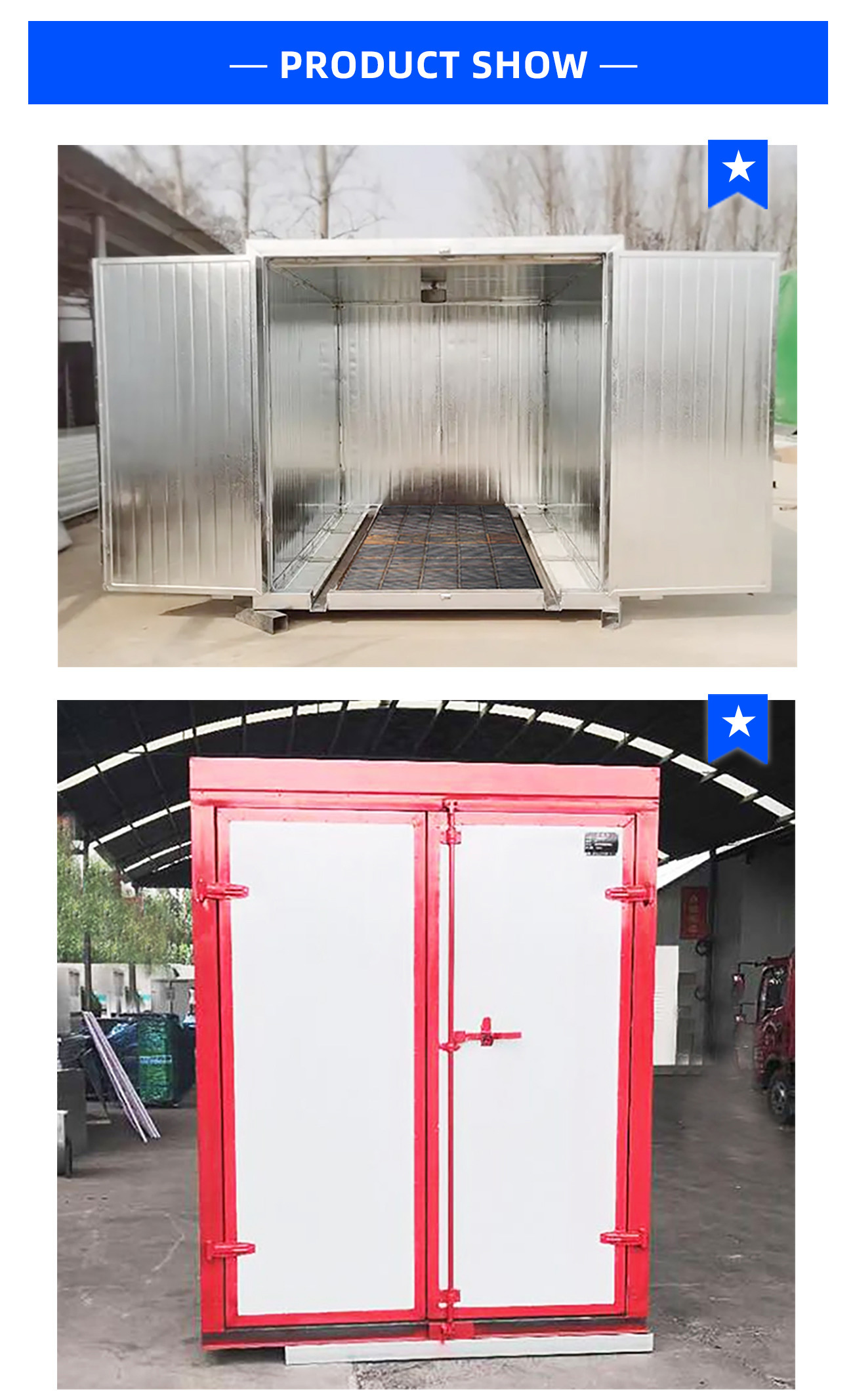

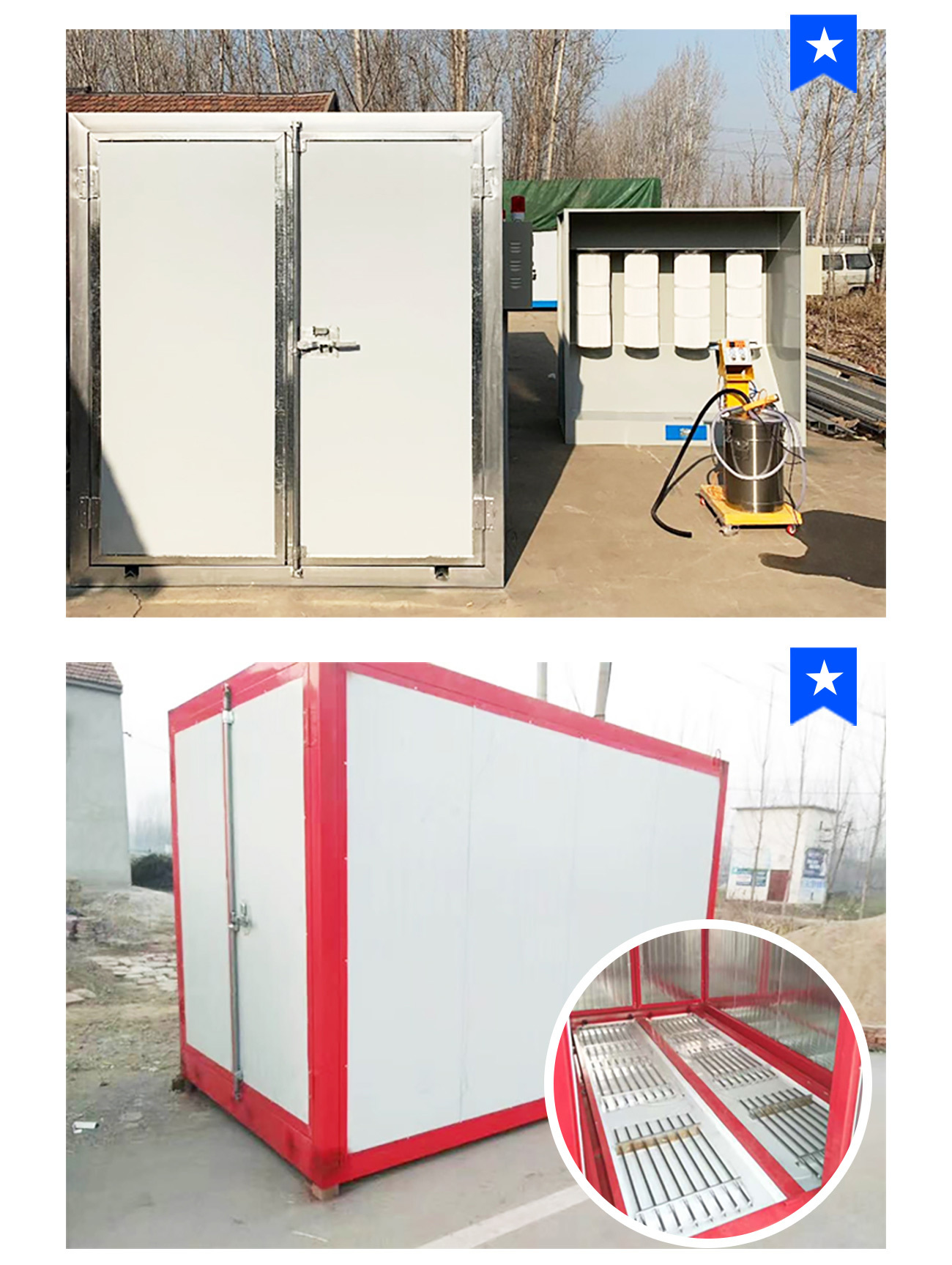

OBC-HH1 High Temperature Spray Booth
- Product Description
- Installation Manual
-
Outline dimension: 2500×2000×2200(mm)
Technical Date
Wall board
● The wall board is a 10 cm thick rock wool board fire insulation board with a bulk density of 100 kg, with high density and good thermal insulation effect.
Heating system
● 27 energy-saving and environmentally friendly heating tubes with heat sinks,divided into 3 groups of relay switch control.
Steel grating
● The bottom heating tube is protected by a steel grating, which can be walked away.
Indoor rails ● There are I-shaped rails on both sides of the bottom, which can carry a weight of 2 tons.
Outside the room to the grounding rail
● It is enough to configure the welded frame rails of the same size outside the baking room.
Electric control box
● Automatic control of Wen Delixi brand electrical appliances, electric control box with high temperature alarm device,
empty furnace to heat up to 200 degrees in 18 minutes.
