OBC-TS12 Telescopic Spray Booth
- Product Description
- Installation Manual
-
Technical Parameter
Outline dimension: 12000×6000×4100(mm)
Inside diameter: 11900×4900×2600(mm)
Entrance door: 1900×2000(mm)
Power: 46.5KW

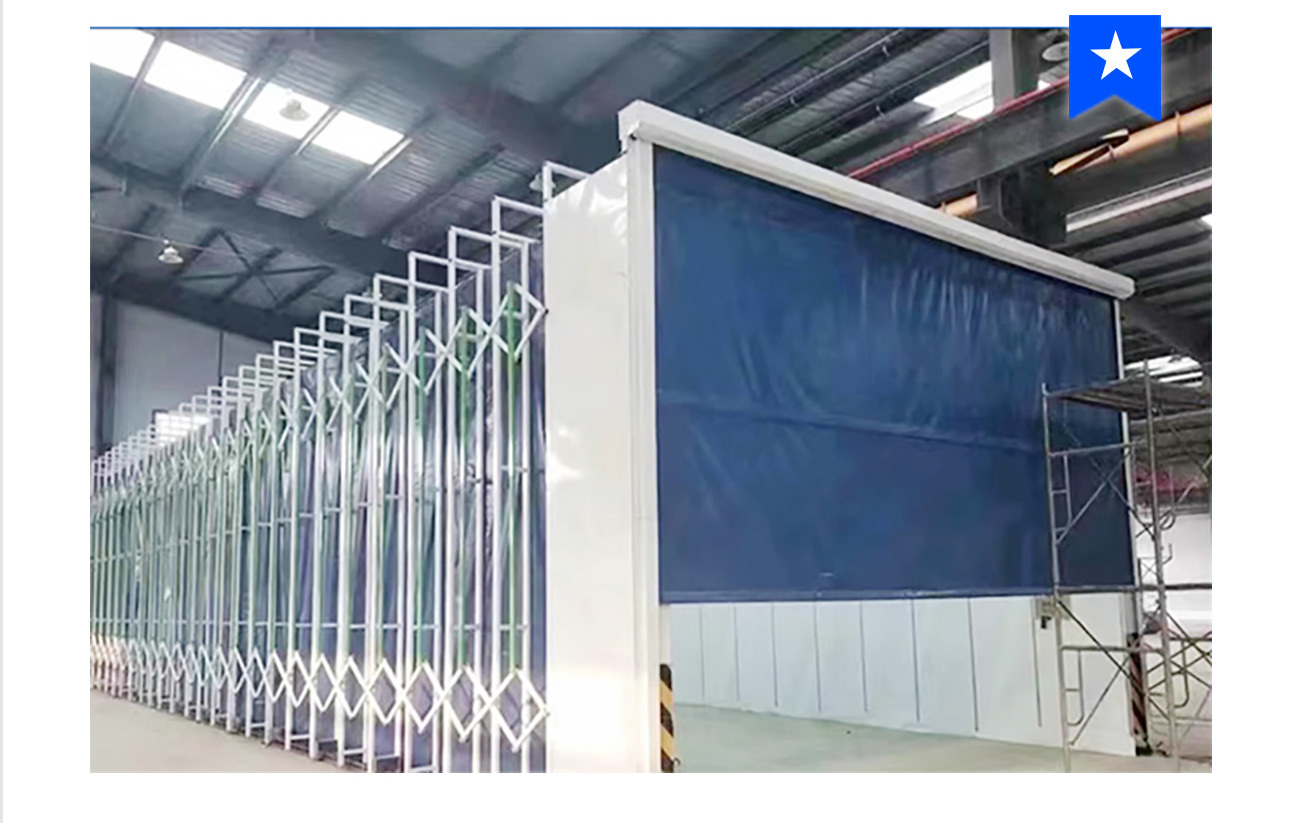

Mobile frame
chamber structure● Gantry frame:Welding of 40*60*1.5mm galvanized square pipe
● Controlling lever link:30*50*1.5MM rectangular galvanized square pipe manufacturing
● Control Angle bar:30*50*1.5MM rectangular galvanized square pipe manufacturing
● Stand column:Welding of 40*60*1.5mm galvanized square pipe
● Beam:40*60*1.5mm galvanized square pipe square pipe manufacturing without spraying
● Reduction gears:The speed ratio:1:60
● Drive motor:The motor power:1.5kw
● Light rail:Table width: 2.2cm
● Pressing plate:0.5 Galvanized sheet shear
● Crank connecting rod hinge screw:012 Screws, nuts, isolation washer, spring washer
● Trapezoid support:Folded galvanized sheet 1.8mmElectric roller
shutter door● External motor + electric shutter door
Packing cloth
● Packing cloth:500g flame retardant knife scraping cloth blue and white
Pulley and Shaft ● Pulley and shaft:made of 45 round steel finishing car
Lighting
● Lighting:LED Light 20 W
Electric cabinet
● Electric cabinet:DELIXI electric components aerial crane remote control
Electronic
control system● Cable:1. 5mm
● Caution light:Shanghai Xianmei Electric AppliancesHardwares and
Accessories● Hardwares and Accessories:Fixing screws, rivets, sealants and other accessories
