OBC-800D Truck Tire Changer
- Product Description
- Installation Manual
-
Technical Parameter

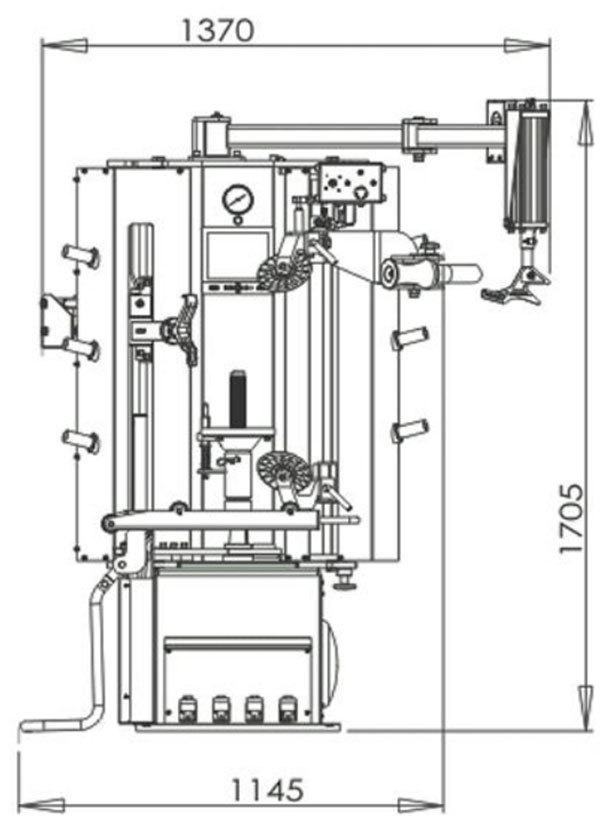

Rim diameter 14"-26" Maximum wheel weight 500kg Max.wheel width 780mm Max.wheel Diameter 1600mm Hydraulic power unit 1.5KW 380V-3ph(220V optional) Gear box motor 1.8KW 380V-3ph(220V optional) Gross Weight 647kg Net Weight 570kg Dimension 2030mm×1580mm×950mm Product introduction
● Disassemble the tires with different rim sizes by adjusting the disassembly head and adjust to the best position, make the disassembly tire convenient and quick, save time and effort, avoid damage to the tire orifice, and ensure the quality of the disassembly tire
Product characteristics
● No crowbar, no tire and rim when disassembling tires
● The working head can be automatically positioned and quickly adjusted to improve the speed of tire disassembly and assembly
● The upper and lower pressure plates cooperate to disassemble and disassemble the tire safely and quickly
● Automatic lifting to save time and effort
Scope of application
● This product is suitable for cars and passenger cars with relatively small flat disassembly and rim diameter between 10 "-30"
Product quality
● EUCE certification
